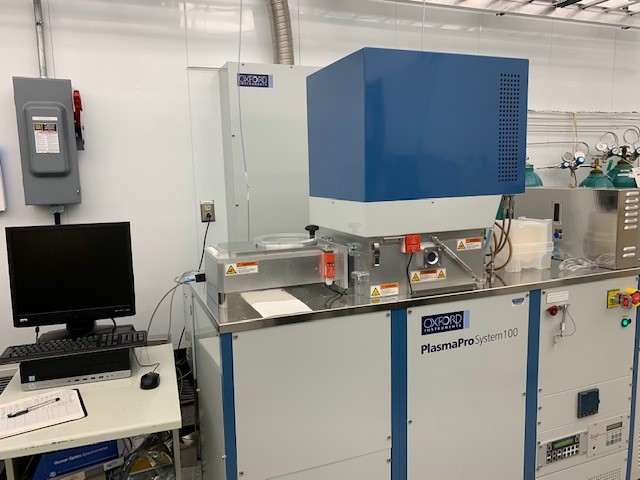

The Oxford Freon ICP-RIE (Inductively Coupled Plasma Reactive Ion Etching) system is primarily used for high-rate, anisotropic etching of dielectric materials. The tool is load-locked and configured to process sample sizes ranging from small dies to 100 mm wafers.
The system supports substrate temperatures from -10°C to 50°C, enabling optimization of etch profiles, selectivity, and surface quality for a variety of materials.
Available Process Gases: CHF₃, SF₆, CF₄, Ar, O₂
Materials Commonly Etched: Silicon (Si), Silicon Dioxide (SiO₂), Silicon Nitride (Si₃N₄), Graphene, Silicon Carbide (SiC)
Operating Limits
|
Parameter
|
Range / Limit
|
|
RF Bias Power
|
Up to 250 W
|
|
ICP Source Power
|
Up to 2000 W
|
|
Chamber Pressure
|
3–80 mTorr
|
|
Chuck Temperature
|
-10°C to 50°C
|
|
Wafer Size
|
Small samples to 100 mm wafers
|
Sample Preparation Requirements:
- Samples must be securely mounted to a carrier wafer using Crystalbond.
- No metal-containing samples are allowed except Al2O3.
- Users introducing new materials or developing new etch processes should consult facility staff before use.
|
